Commercial Peanut Butter Production Line Price 500kg/h

Min Order: 1 set
Supply Quantity: 200 sets per month
Loading Port: Qingdao|Shanghai|Tianjin
Description: This production line can produce various peanut butter, such as, stable, creamy, salty, smooth peanut butter,grainy peanut butter and other peanut butter.

Features

Introduction of Peanut Butter Production Line:

The peanut butter production line is designed according to market demand. This production line can produce various peanut butter, such as, stable, creamy, salty, smooth peanut butter,grainy peanut butter and other peanut butter. Our company can produce peanut butter machine with different production capacity to meet customers’requirements.

Working Process of Peanut Butter Processing Line:

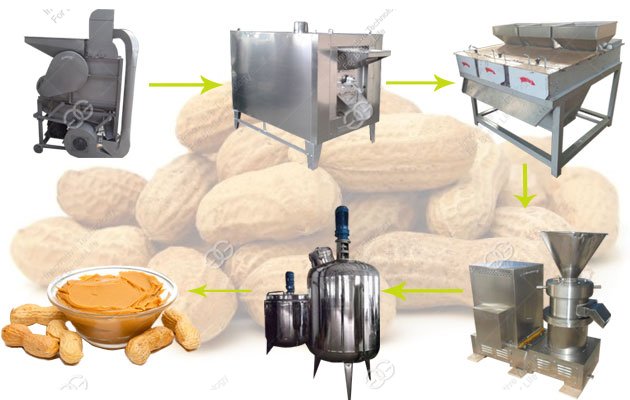

Raw materials - Pick out stone- Shelling - Peanut roasting - Cooling - Peeling - Grinding - Mixing - Peanut butter cooling - degassing - Filling into bottles.

♦Peanut Roasting Machine: Batch roaster’s working temperature is 200-210 ºC, 20-30 minutes. Use batch roaster will bake some delicious smells.

♦Peanut Cooling Machine: Peanut will be send cooling belt to cool.

♦Peanut Peeling Machine: Put the roasted peanuts into peeler to take off the red skin, the double rollers will frication the red skin, the simple cyclone system will suck the red skins, most of them will be put in half-piece, then fall to the selecting conveyor, the over-roasted andun-blanched peanut kernel is picked up by manual or mechanical.

♦Peanut Butter Primary Grinding Machine: Using steel grinder to make the first grinding.

♦Second Grinding Machine: Using colloid grinder to make the second grinding, the fineness of grinding is controlled below 7μm, temperature of grinding is controlled below 68C.

♦Peanut Butter Mixing Machine: Make the butter more homogeneous.

♦Peanut Butter Cooling Machine: The butter through second grinding should be cooled immediately. The temperature should go down 45 ℃.

♦Peanut Butter Degasser: Take out the air from peanut butter.

♦Peanut Butter Storage Tank: Settling down in the storage tank till the temperature drop to air temperature.

Advantages of Peanut Butter Processing Line:
The biggest advantage of peanut butter production line is operation flow, high mechanization level, good reliability, all closed production and pollution-free. The high quality machines meet international standards.

Peanut Butter Production Line Working Video: ►

Technical Data

No.	Name	Power (kw)	Size (mm)
1	Feeding Machine	0.55	700700800
2	Hoister	0.75	10005002800
3	Continuous Roaster	24	300012002600
4	Elevator	0.75	10005002800
5	Continuous Cooler	5	32008002400
6	Peeling Machine	0.74	11003501100
7	Selection Belt	0.75	50008001000
8	Elevator	0.75	10005002800
9	Storing Feeding Machine	0.55	7007002200
10	Grinding Machine	5.5	900350900
11	Storage tank		150L
12	Paste pump	2.2	1200300350
13	Mixing tank	2.2	200L
14	Vacuum tank	2.2	200L
